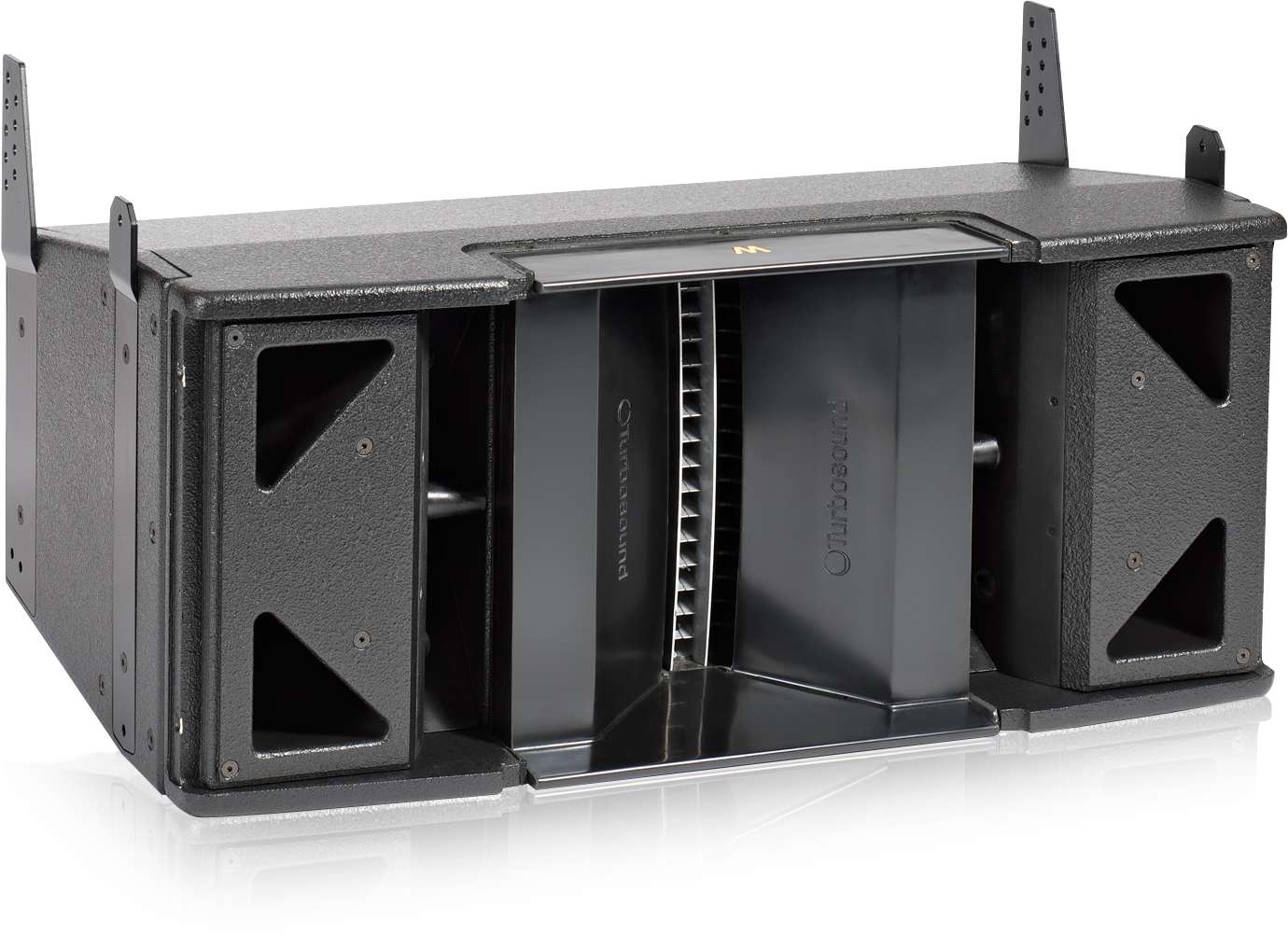

The Turbosound TCS-1061-75 is an arrayable 3-way dual 10" full-range passive loudspeaker engineered for permanent install applications — arenas, large worship spaces, sports venues, and multi-purpose halls — where the system designer needs controlled directivity, high SPL, and a cabinet that physically arrays without compromise.

Engineered for the system designer

The combined Polyhorn and Dendritic waveguide delivers a tight 75° horizontal × 16° vertical pattern, ideal for narrower coverage zones in deep rooms. Two carbon-fibre-loaded 10" LF drivers with inside/outside wound coils share the low end; a high-efficiency 6.5" mid-range driver with a low-mass coil delivers transient response above the LF crossover; and a 1" neodymium-motor aluminium-dome HF compression driver covers the top end. Switchable bi-amp/tri-amp operation gives the engineer flexibility on amplifier topology.

Specification & install

780 W continuous, 3,120 W peak power. Trapezoidal cabinet shape allows visually unobtrusive arrays; internal rigging permits variable array curvature. 15 mm (5/8") birch plywood construction with semi-matt black finish, powder-coated perforated steel mesh grille, and industry-standard 8-pole twist-lock connectors.

This model is no longer in production. Please consult Turbosound for current arrayable install equivalents.
