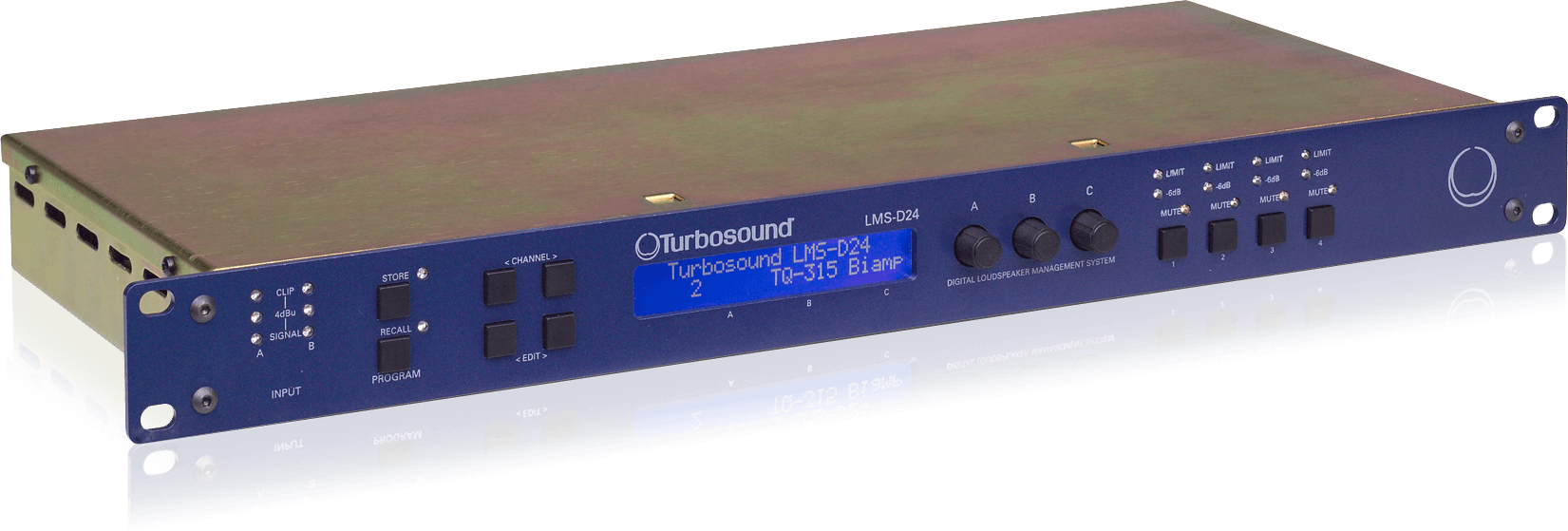

The Turbosound LMS-D24 is a 2-input, 4-output digital loudspeaker management system with an integrated BV-Net network card, housed in a rugged 1U rackmount chassis for professional install and portable applications. It centralises system processing—crossovers, EQ, delay, limiting and routing—in a single device, replacing a stack of outboard analogue tools with a deterministic DSP signal path engineered for high signal integrity end to end.

Each of the two inputs offers a high-pass filter, 2 shelving filters, 6 parametric EQ bands and up to 400 ms of delay, while each of the 4 outputs adds 2 shelving filters, 6 parametric EQs, 80 ms of delay and a dedicated limiter. Crossover filters reach up to 48 dB/octave with Butterworth, Bessel and Linkwitz-Riley responses, giving system engineers the precision needed to align passive and bi-amped Turbosound enclosures or third-party cabinets. Comprehensive channel grouping and ganging let multiple outputs share parameter edits, speeding up tuning and reducing configuration mistakes during commissioning.

TURBODRIVE remote-control software, downloadable from turbosound.com, provides full graphical setup and live control, with factory presets available for Turbosound passive and bi-amped systems to shortcut deployment. The BV-Net card enables networked configuration and monitoring across larger systems. An auto-ranging universal switch-mode power supply makes the LMS-D24 ready for international touring and install duty without re-strapping. Designed and engineered in the U.K., it is a serious, install-grade processor for engineers who need real DSP authority over their loudspeaker chain.
