Arrayable 2-Way 12" Full Range Loudspeaker with Dendritic Waveguide for Installation Applications, 90° H x 60° V Dispersion


Arrayable 2-Way 12" Full Range Loudspeaker with Dendritic Waveguide for Installation Applications, 90° H x 60° V Dispersion
Arrayable 2-Way 12" Full Range Loudspeaker with Dendritic Waveguide for Installation Applications, 90° H x 60° V Dispersion
The Turbosound TCS-122-96 is an arrayable two-way 12" full-range install loudspeaker featuring a dendritic waveguide that delivers a controlled 90° H × 60° V dispersion pattern. Designed and engineered in the United Kingdom, the cabinet is engineered for permanent installation in performance spaces, houses of worship, transit halls and live event venues where consistent coverage and long-term reliability define success.

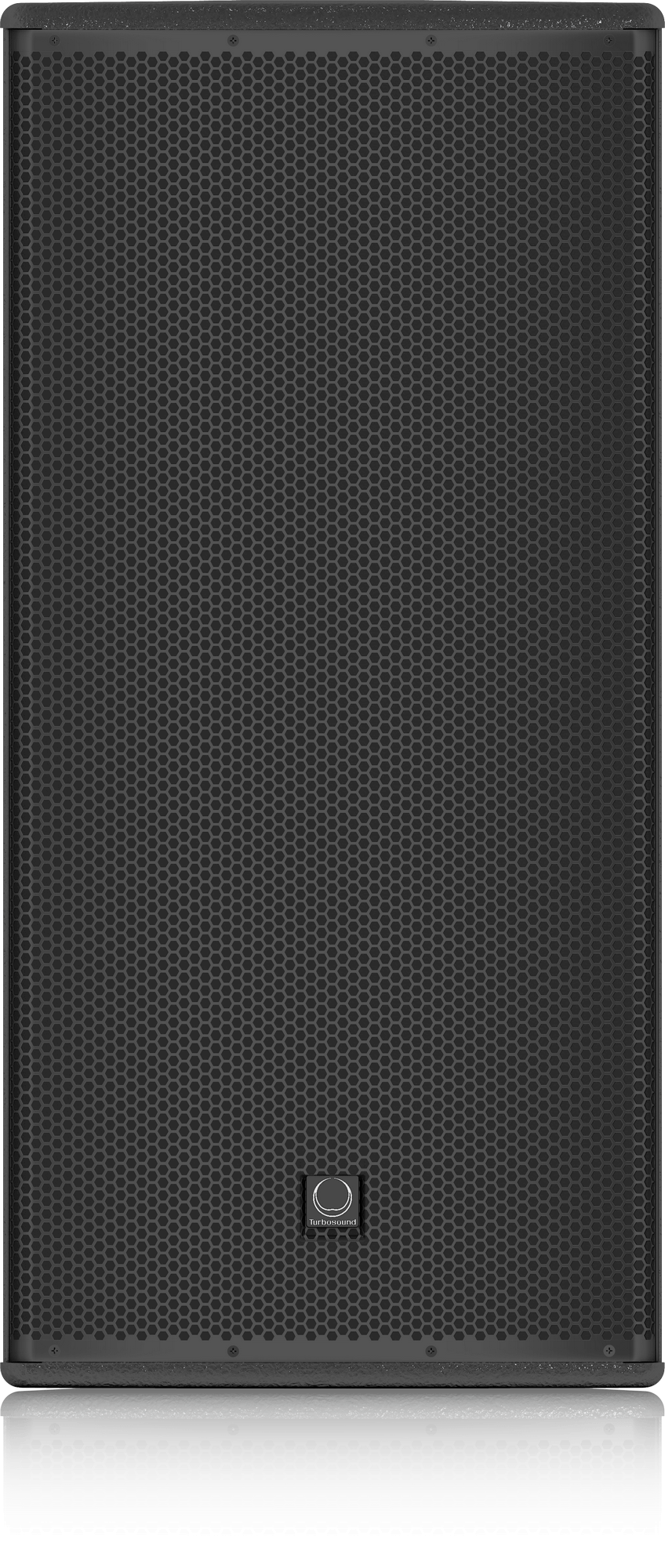

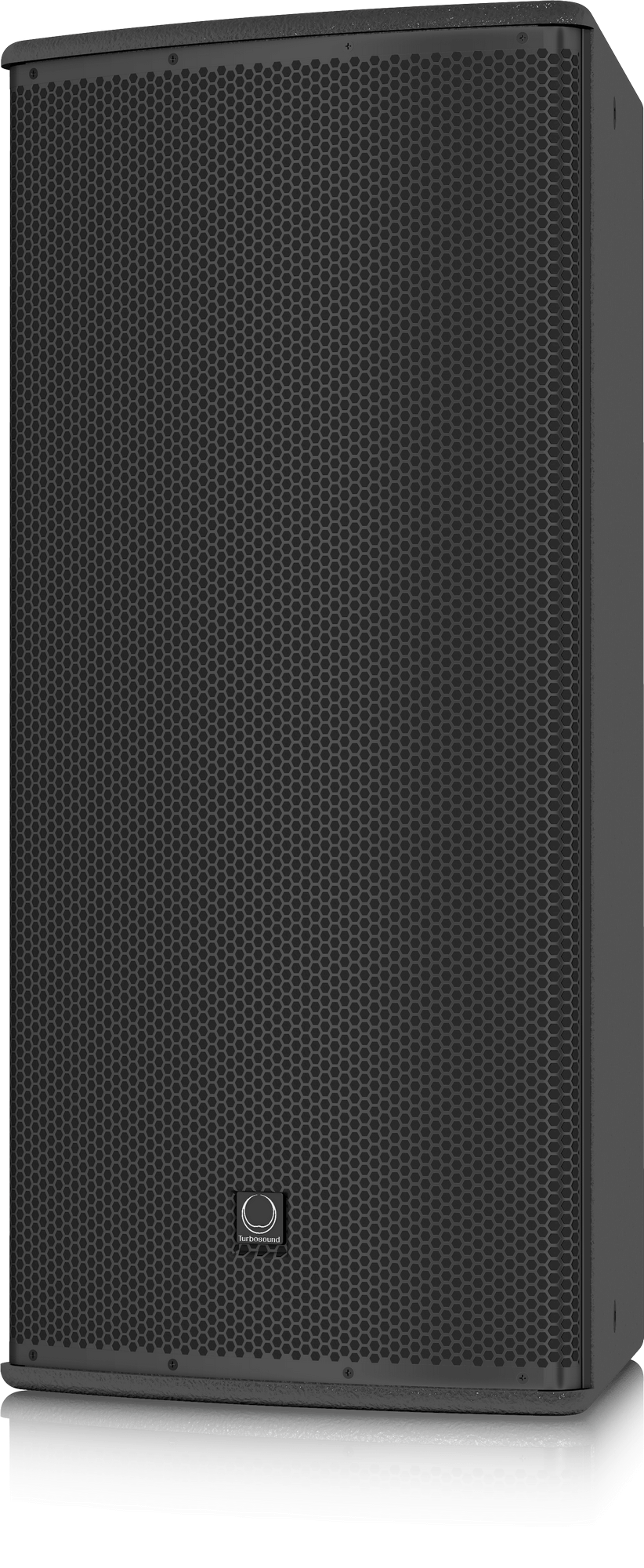

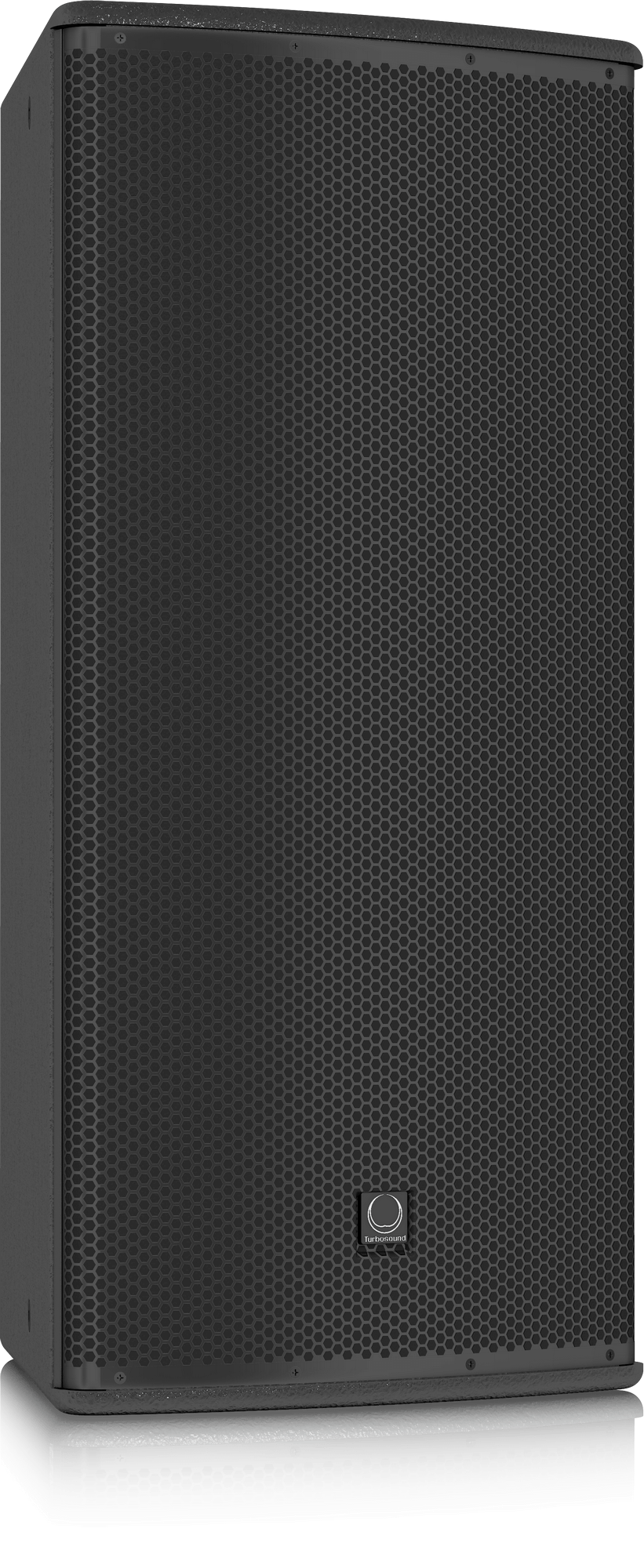

A 12" LF transducer pairs with an HF compression driver mounted on the dendritic waveguide, producing an even, predictable coverage envelope across the listening plane. The trapezoidal cabinet shape supports horizontal and vertical arraying for larger spaces, while the 15 mm birch plywood enclosure with semi-matte black finish and powder-coated perforated steel grille is built to be installed and forgotten.

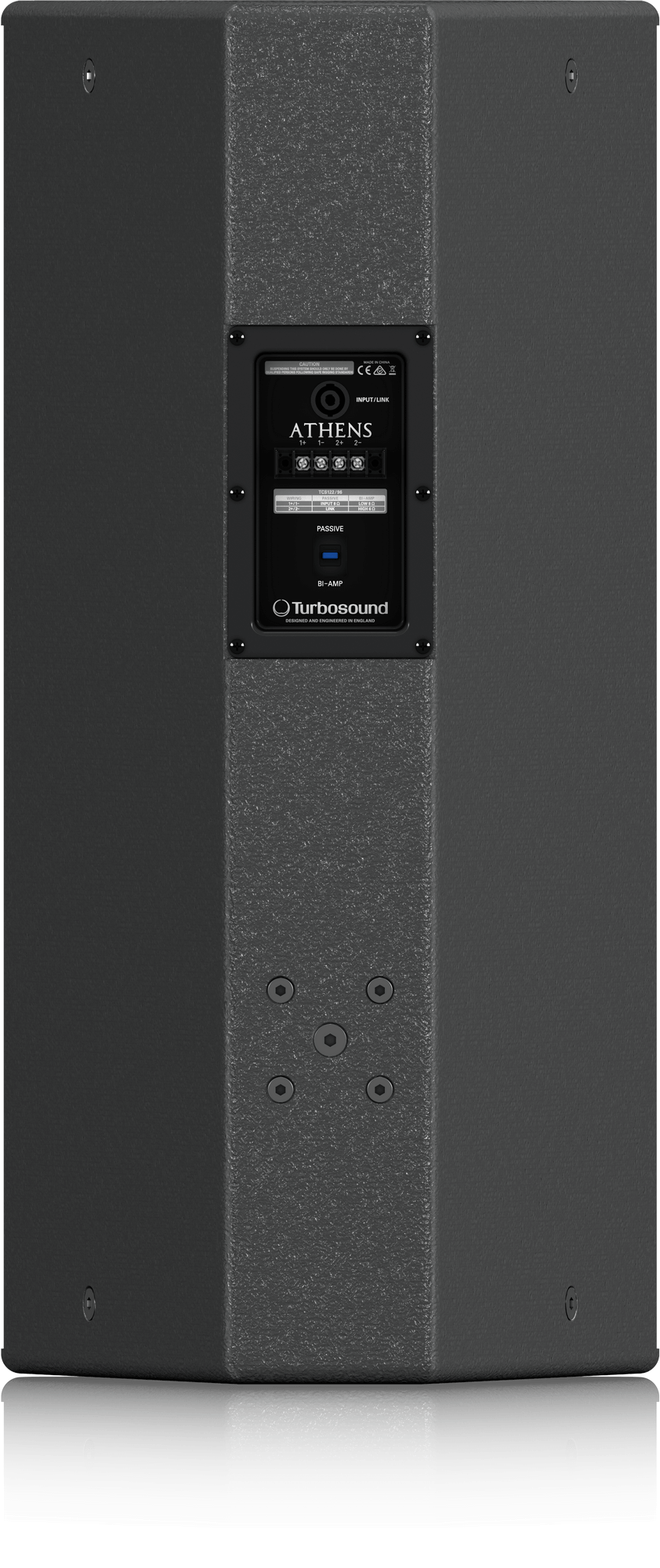

Multiple internal rigging points support bracket mount and suspension in any orientation, with industry-standard barrier-strip connectors for terminated install wiring. The TCS-122-96 (part code 15F0210BLK) is the workhorse install loudspeaker in the Contractor Series when you want wide horizontal coverage in a 12" format.
