NuQ118B-AN Networked Powered Subwoofer

The Turbosound NuQ118B-AN is a 3,000-Watt powered 18-inch dual-ported band-pass subwoofer optimised for extended low-frequency reinforcement. Built around a KLARK TEKNIK Class-D amplifier with onboard DSP and ULTRANET networking, it delivers the bottom end for music, live, and large-format install systems.

Driver and Cabinet Tuning

A double-suspension 18-inch LF driver with inside / outside wound voice coil sits inside a dual-ported band-pass enclosure tuned for deep extension and high output. Frequency response is flat within plus or minus 3 dB from 40 Hz to 150 Hz, with a maximum SPL of 136 dB.

Specification Highlights

• Power: 3,000 W KLARK TEKNIK Class-D
• Driver: 18-inch double-suspension LF
• Configuration: dual-ported band-pass
• Frequency response: 40 Hz to 150 Hz, plus or minus 3 dB
• Maximum SPL: 136 dB peak at 1 m
• Dimensions: 773 mm H x 579 mm W x 700 mm D
• Net weight: 57.9 kg

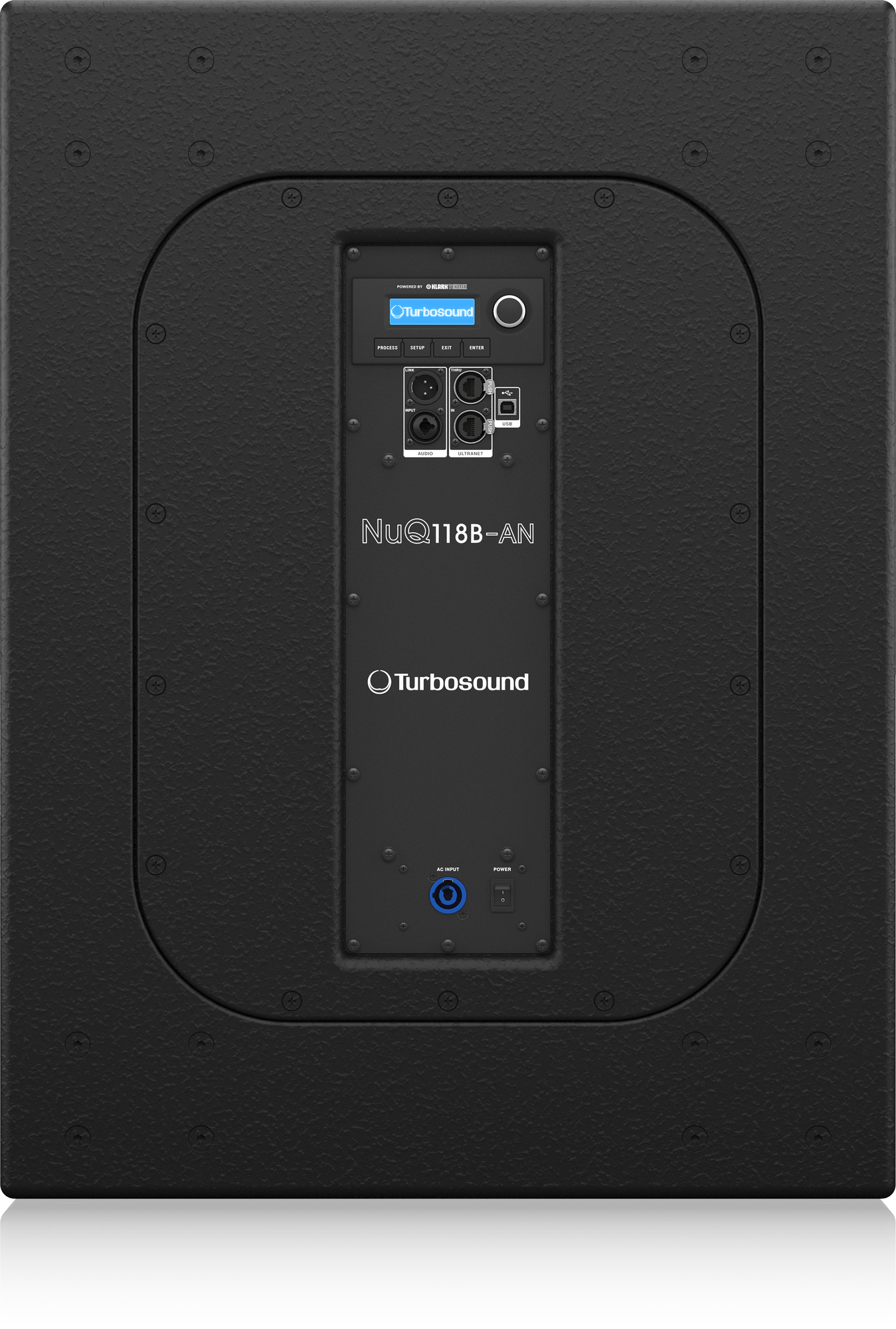

• ULTRANET via 2 x locking etherCON
• Balanced XLR in, XLR thru, USB for PC control

Designed For

Clubs, larger houses of worship, performance venues, and install systems requiring deep, high-output band-pass low-frequency response with networked control over a single Cat5 home run.
