From the mixer to the array on one cable.
A growing band or a busy venue soon outgrows a pair of speakers on stands. The TBV123-AN is built to scale: pole-mount it on a TBV118L-AN subwoofer, or fly several from a TBV123-FB flybar. Each cabinet covers 65 Hz to 20 kHz (±3 dB) with 100° by 15° dispersion.
Network the system, not each box.

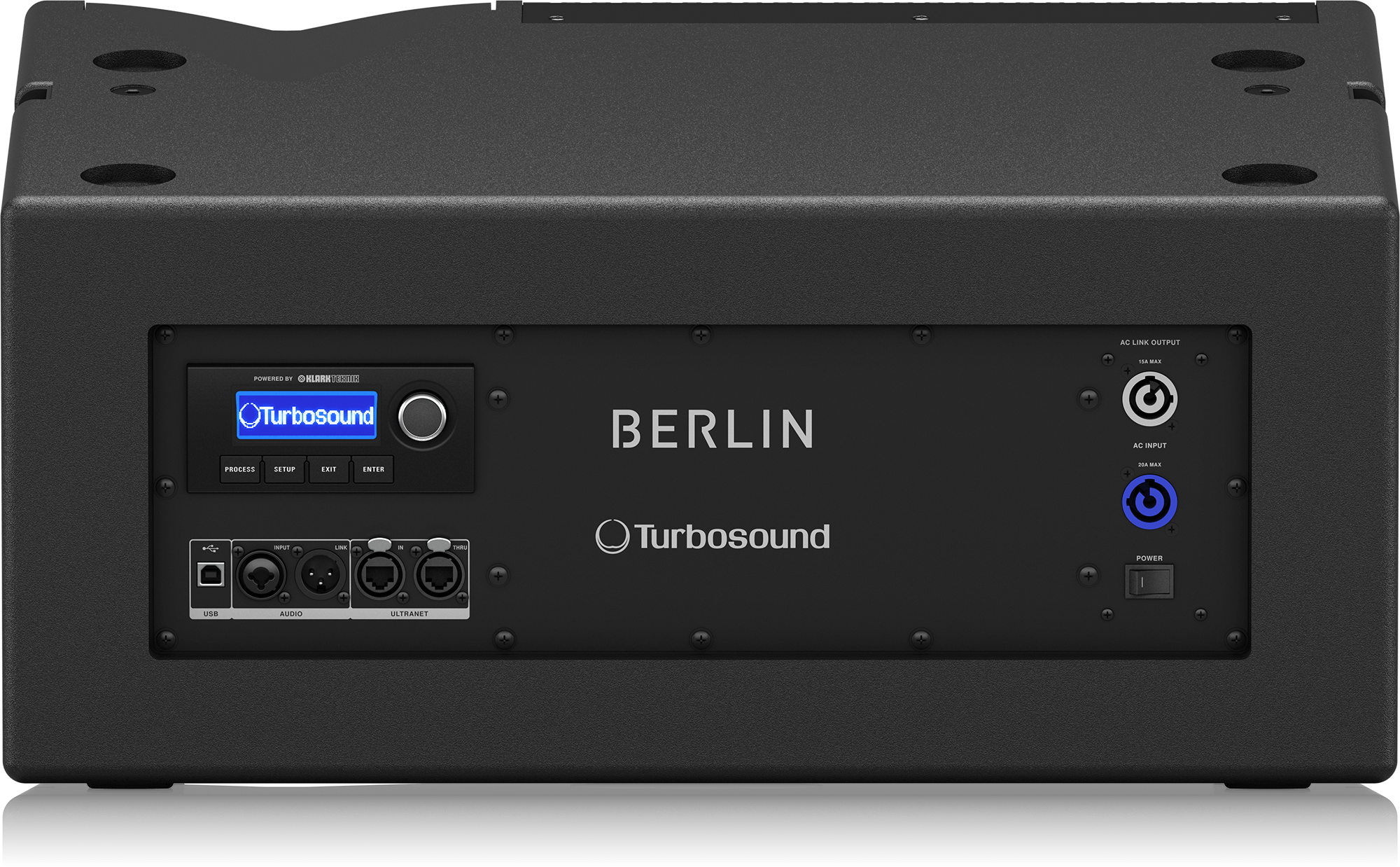

Its ULTRANET IN and THRU sockets, RJ45/Neutrik etherCON, carry as many as 16 channels at 24-bit resolution. The system links to other ULTRANET devices, such as digital mixers and personal monitor systems. Seven devices can sit in series along that line. Connect USB and the dedicated PC software sets and watches every DSP parameter.
Ready for pole, stack or flybar.
The 18 mm plywood cabinet weighs 23.0 kg and has an Integral Suspension System with four M10 points. On an optional pole, it mounts straight or tilted down. Ground-stacked and suspended systems follow the TBV123-FB rigging manual. Only authorised personnel may design and install them, and for suspended systems they must also be certified.
