TFX122M-AN

Coaxial 2-way stage monitor with a 311.5 mm (12") LF driver, Klark Teknik DSP and ULTRANET

Where to buy TFX122M-AN (0315-ABC)

A wedge that starts with your vocal.

On a small stage, the singer depends on the wedge. Set the position to Floor and the EQ to Vocal. The speaker is then configured as a floor monitor for vocals. Inside are a 311.5 mm (12") LF driver and a 25.4 mm (1") HF compression driver.

Feedback filters that set themselves

FBQ feedback detection uses up to 8 filters. It can set as many filters as required automatically. Whenever a new feedback frequency is discovered, the first filter is released to attenuate it.

TFX122M-AN, image 2 of 6

Mixes over one network cable

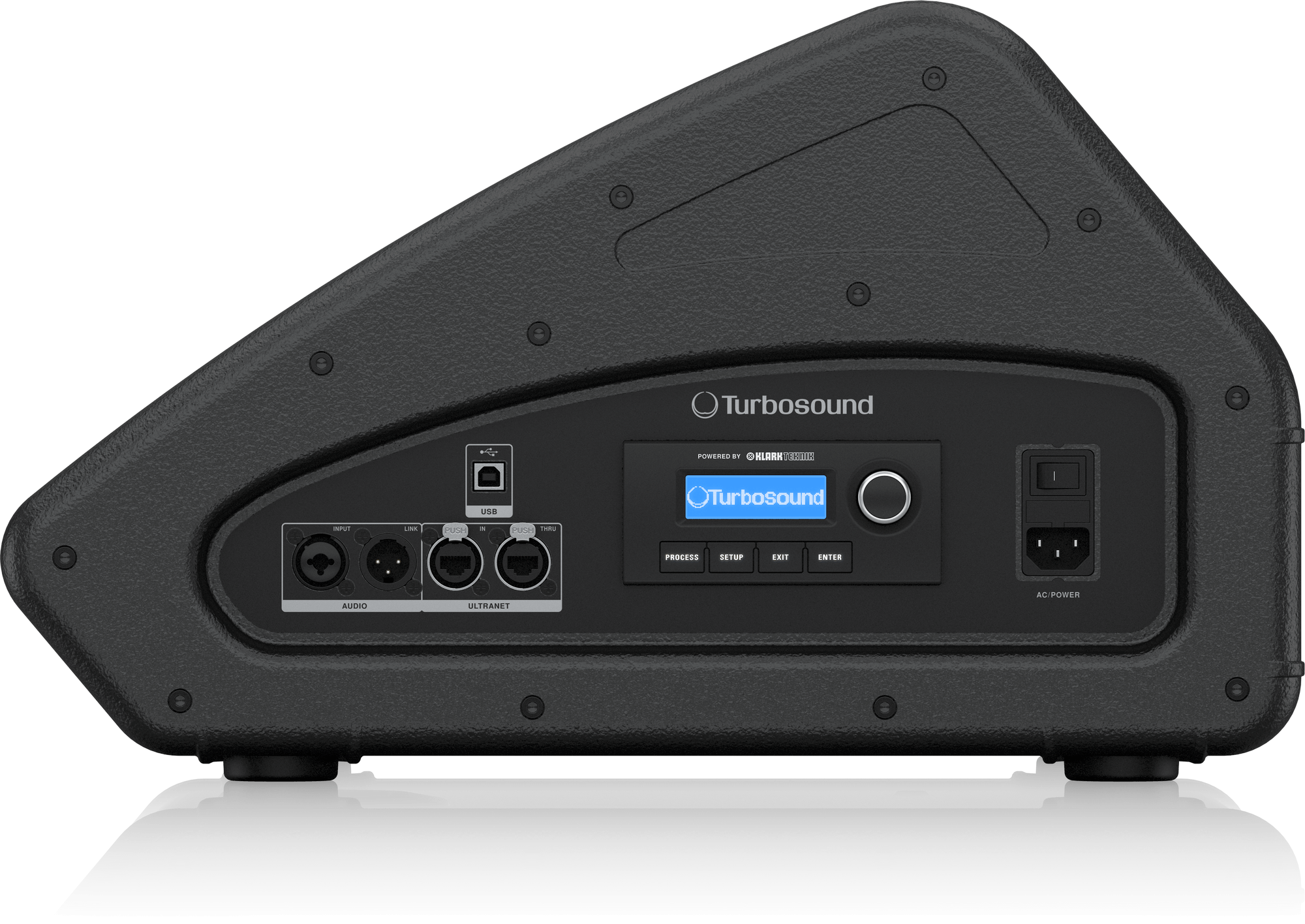

Choose the local analogue input or ULTRANET, for example audio from an M32. ULTRANET carries 16 channels over shielded CAT5, and up to 7 devices connect in series on one cable.

TFX122M-AN, image 3 of 6
